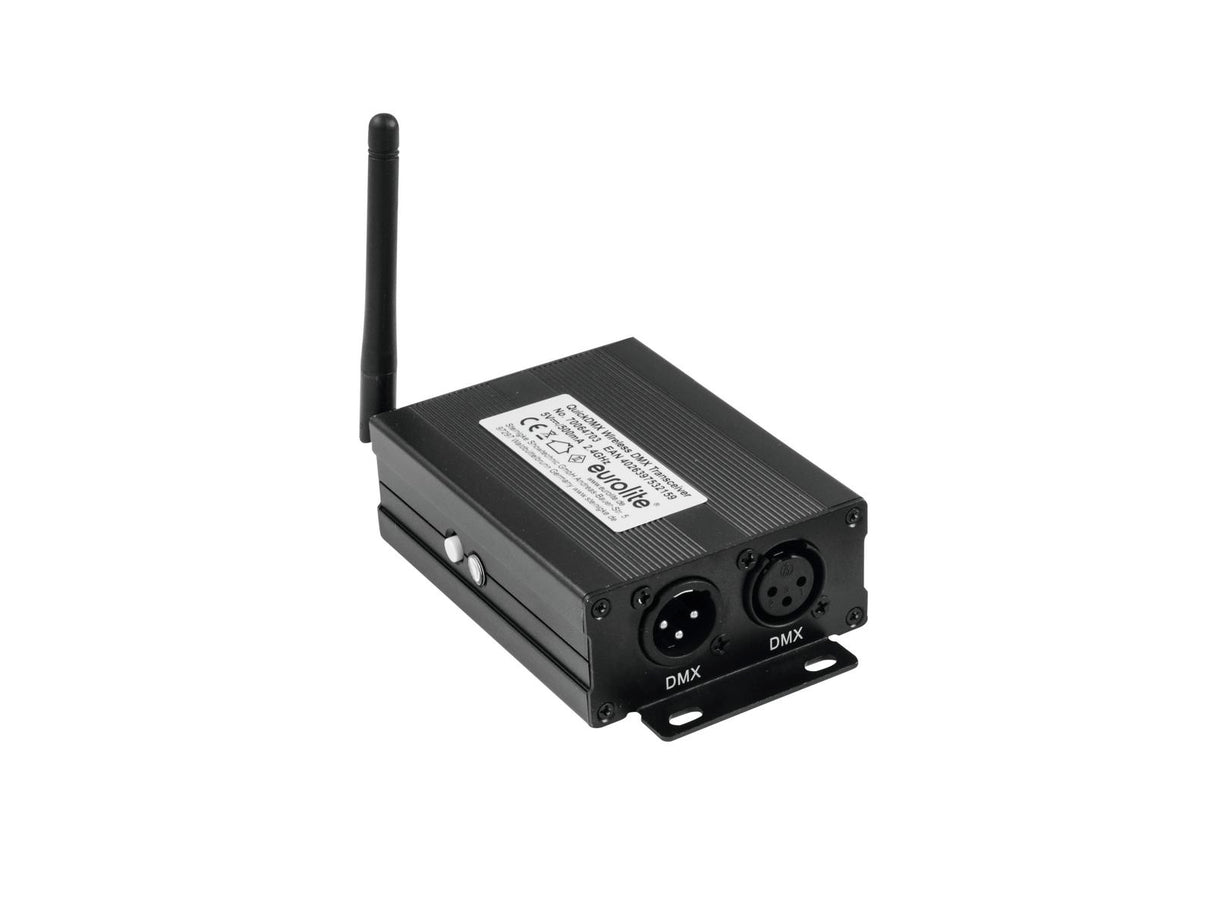

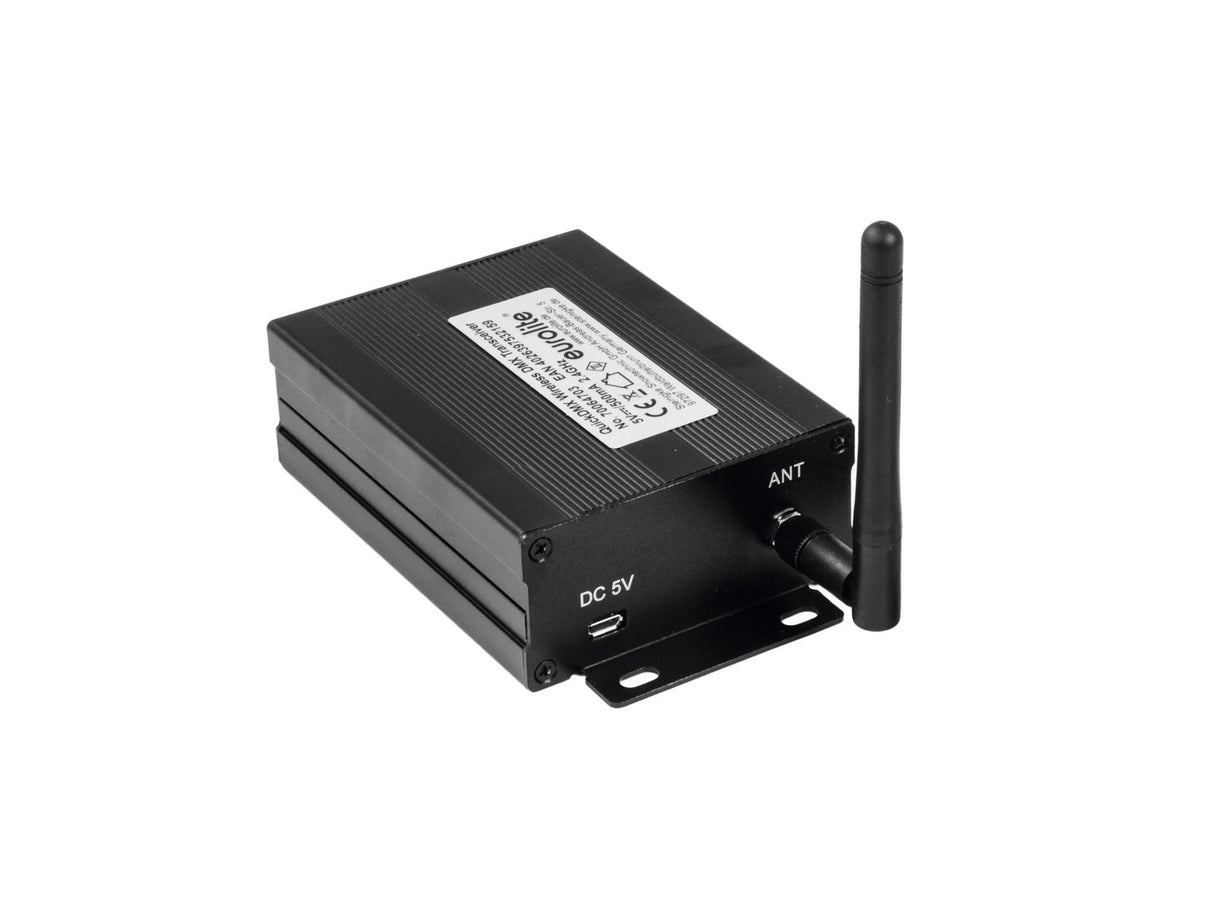

Eurolite QuickDMX wireless transmitter/receiver
€106,00
Prezzo unitario
/
Non disponibile
Descrizione
Descrizione
- Compact DMX transmitter / receiver for wireless transmission of up to 512 DMX channels
- DMX input and output, 3-pin XLR
- Auto-switching transmitter
- Wireless DMX eliminates extensive cabling between DMX controller and DMX-controlled devices in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation is also possible with other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- Operating range up to 400 m (with line of sight)
- Simultaneous operation of up to 6 transmitters, allowing control of 3072 DMX channels (6 DMX universes)
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- Plug & Play: Quick and easy setup with one control button for connecting/disconnecting QuickDMX devices
- LED indication for functions
- Micro USB port; PSU included
- 2.4 GHz ISM band - license-free worldwide
Specifiche
Specifiche
-
Weight (kg)
Altre specifiche
Altre specifiche
Specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| via power unit included in the delivery | |
| Carrier frequency: | 2.4 GHz ISM band, 78 channels |
| Modulation: | GFSK |
| Coverage: | 400 m (line-of-sight) |
| Parallel operation: | max. 6 transmitters |
| DMX conncector: | 3-pin XLR mounting socket |
| 3-pin XLR mounting plug | |
| DMX channels: | 1 universe (512 channels) |
| Dimensions with antenna (L x W x H): | 212 x 75 x 100 mm |
| Weight: | 220 g |
Brand: Eurolite
SKU: EUR-70064703
