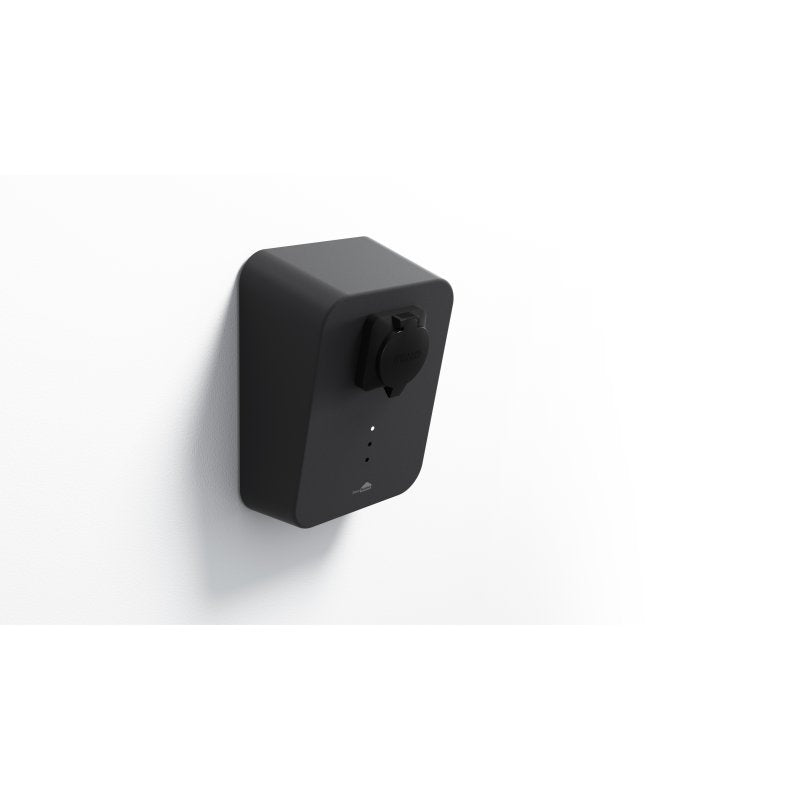

Innohome Charlie-3 EV Charging Station

• IEC Charging Mode 3
• Type 2 charger
• Phase 3 - 230VAC input
• 32A (@22kW)
• LED status indicator.
• IP44 casing

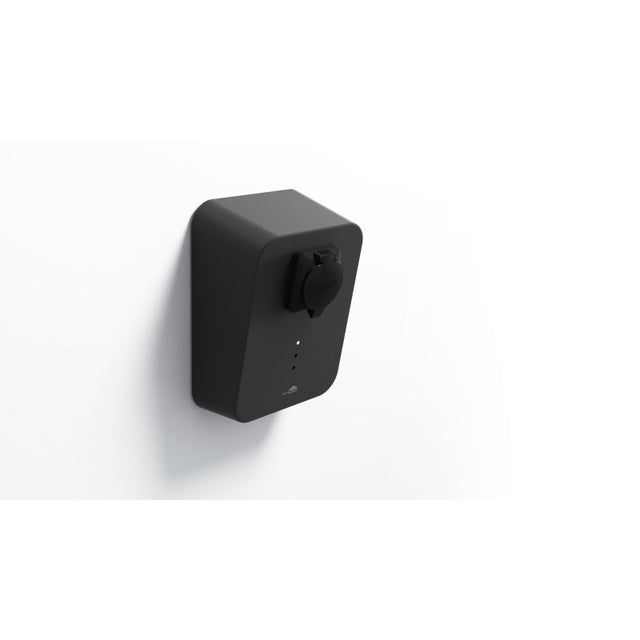

Innohome Charlie-3 EV Charging Station

• Charging station for electric and hybrid cars in mode 3.
• Type 2 and therefore suitable for almost all electric/hybrid cars according to the EU standard.
• Compact and stylish modern Scandinavian design fits perfectly into any environment.
• The 32 A ensures that the car is fully charged overnight.
• In one hour of charging, the battery achieves a driving range of approximately 120km.
• Built-in 6mA DC monitor and LED charger status overview.

• IEC 61851-1 Charging Mode 3
• IEC 62196 (Type 2) Charging socket
• 3-phase 230VAC Input
• 32A Maximum Charging Current (22kW)
• Installer configurable charging current
• Built-in 6mA DC Current monitor
• LED Indicators for charging status
• IP44 Casing
• Operating Temperature -25 degrees to +50 degrees Celsius
• CE Certified
